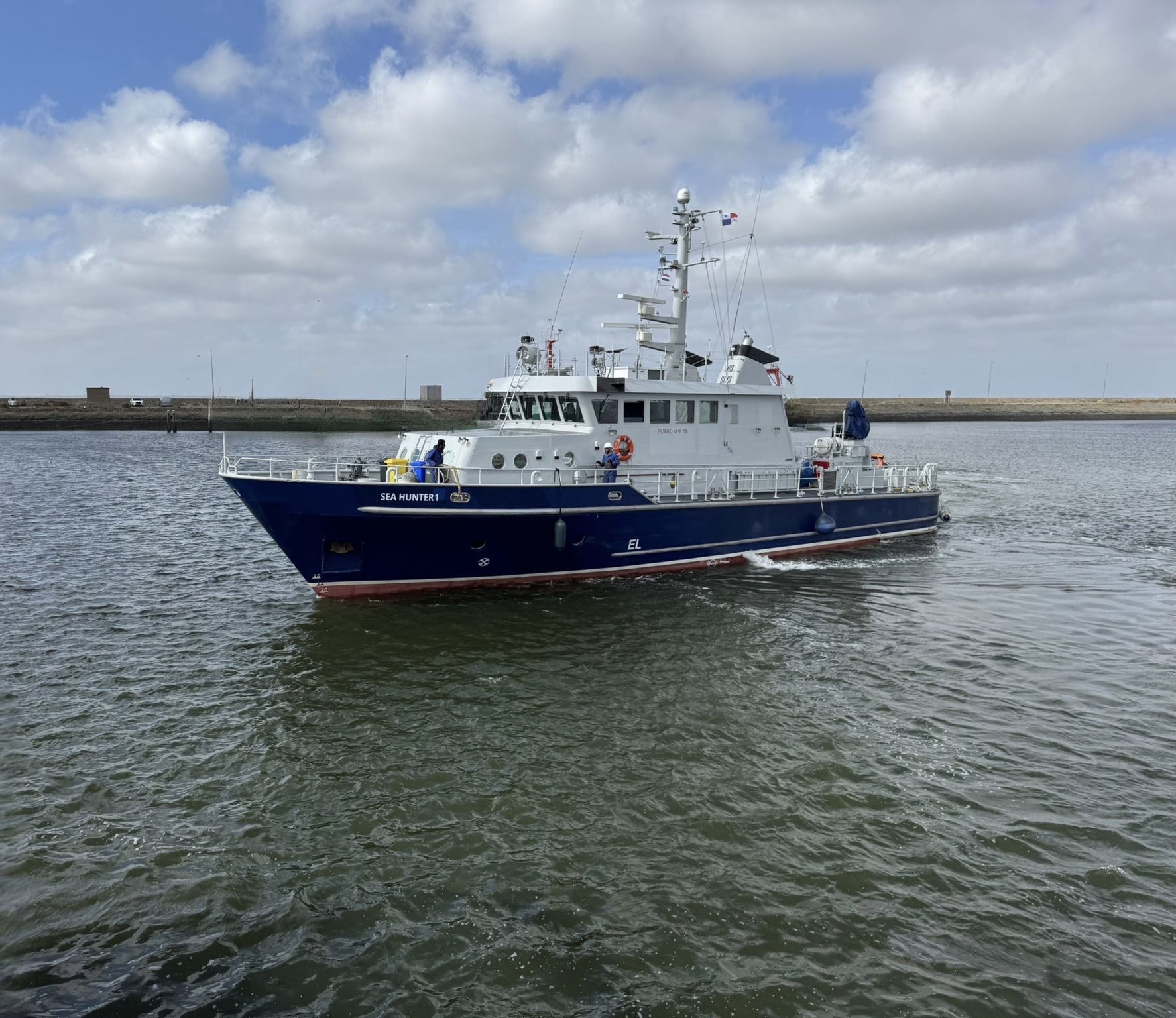

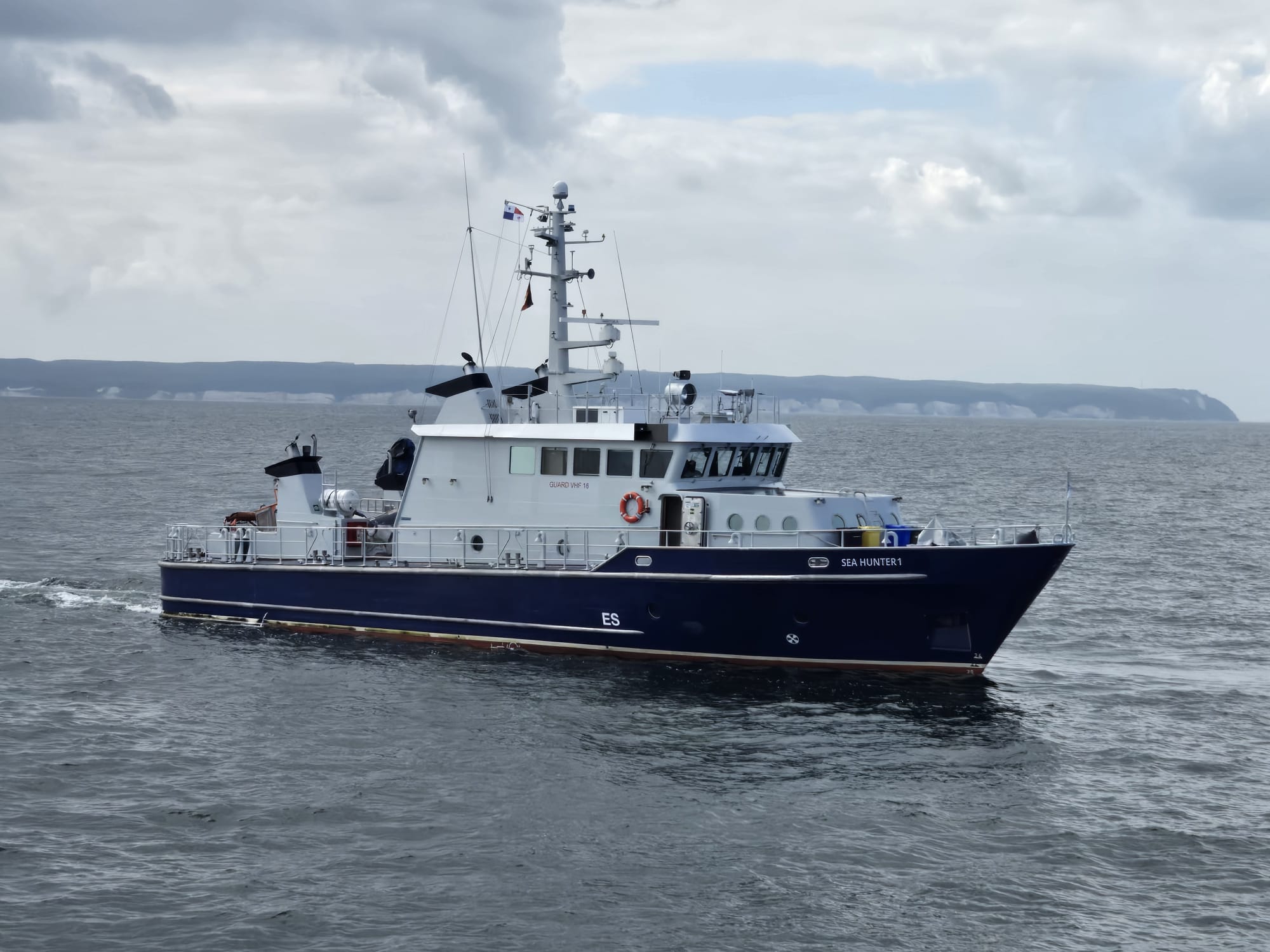

SEA HUNTER
Year of construction: 1968
Builder Vahali Gendt Nederland
Classification: PMDS Panama
Refurbished: 2011-2014
Vessel Name: Sea-Hunter
Flag: Panama
IMO Number: 6812625
Call Sign: HP7509
MMSI 370789000
Dimensions:
L.o.a : 26.24 m
Width : 6.50 m
Draught : 3.20 m
Air Draught : 14.00 m
Net Tonnage : 44.00
Gross Tonnage : 99.00
Deadweight : 199.00
Max.Speed : 12. knots
Propulsion system:
Main engine(s):
SWD 6FHD 240 370 KW (1987- overhauled 2018)
Generator(s):
1x Iveco 35 kva (2019)
1x Iveco 50 kva (2014)
Propeller : 1x 4 blads fixed pitch
Anchor(s):1 x High Hold Power Anchor, 150 kg
with 6 shackles chain +/- 150 Mtr
Deck Equipment:
A-frame SWL 3 tons
Beam Winch : 1x hand ,1 drums
Safety Equipment:
MOB : 1x 6 pers. Novorania 4.20 mtr
Solas with outboard motor 25 hp
Life Rafts : Solas Approved 2x 12 pers.
Safety net : 1x Markusnet MS
Communication Equipment:
GMDSS Compl. : A1 – A2
SSB Radio : 1x Icom ICM-802 DSC
VHF Radio : 1x Furuno FM-2721 DSC : 1x Shipmate
Portable VHF : 1 Entel HT-469 GMDSS
Inmarsat Sat-C : N/A
V-Sat : 1x Intellian V80G
Sat Televisions : N/A
Mob. Telephone : N/A
A.I.S. : Koden AIS
E.P.I.R.B. : 1x MC Murdo
Watch Alarm : 1x V-500
E-mail : [email protected]
Back up mail :[email protected]
V-Sat. Phone : 0031-102680180
Backup Phone : 0088-1641438745
Navigation Equipment:
Radar : 1x Furuno FAR-2117 with AIS and ARPA
1x Koden5312 with AIS and Arpa
GPS Navigation : 1x Furuno GP-32
1x Furuno GP-80
Echo Sounder 1x Furuno LS-6100
Navtex : 1x Navtex Marine pro plus
Sat.Compass : 1x Furuno SC-50
Magnetic Compass: 1x Pilot Mk III
Automatic Pilot : 1x Simrad AP-50
Electronic Charts : 1x Seapro 3000
Bunker/Storage capacity:
Fresh Water : 13 m3
Fuel Oil : 35 m³
Lub Oil : 0.5 m³
Sewage : 4.3 m3
Clear Deck : 20 m²
Chiller : 0.8 m³ below deck
Reefer : 1 m³ below deck
Accommodation :
Accommodation : 18 pers. total
Berths : 1 x 2 pers
3 x 2 pers
1 x 4 pers
1 x 6 pers
Consumption:
1250 ltr @ 24 hours by 15 knots
700 ltr @ 24 hours 7 knots
400 ltr @ 24 hours Guard duty
