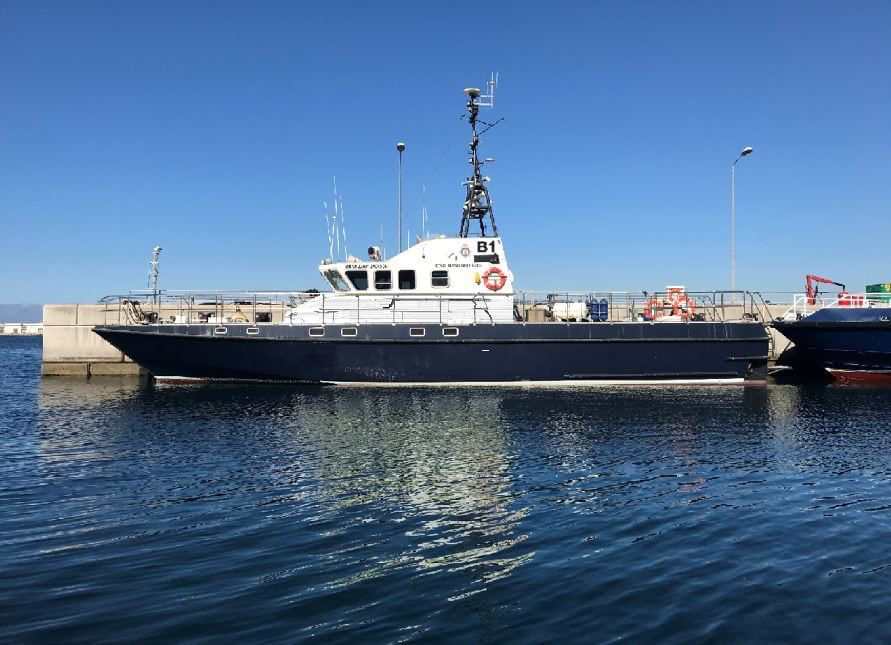

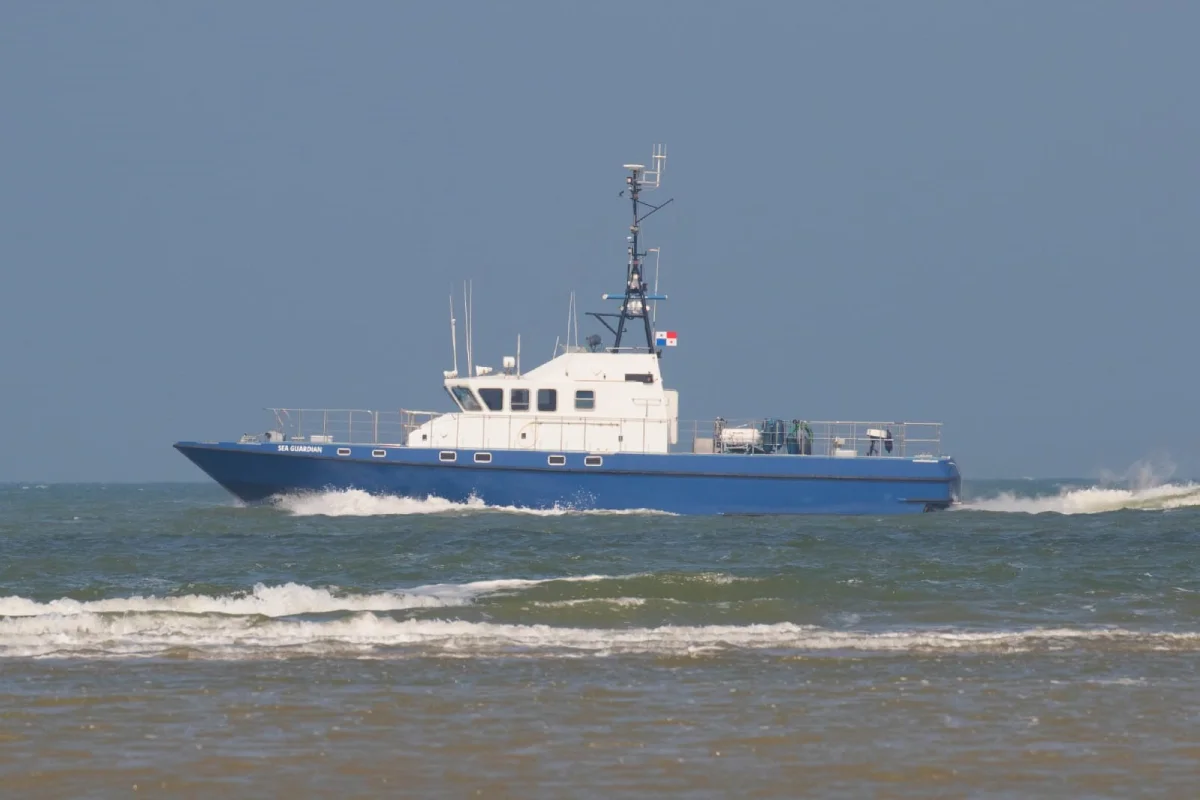

SEA GUARDIAN
Main Details:
Year of construction: 1994
Vessel Name: Sea Guardian
Flag: Panama
IMO Number: 8594382
Call Sign: HOA5475
MMSI: 352002127
Class : PMDS
Unrestricted 150 Nm from shore
Support Vessel
Sea area GMDSS A2
Dimensions:
L.o.a : 24,20 Mtrs.
Width : 6.00 Mtrs.
Draught : 1.70 Mtrs.
Net Tonnage : 46 NT
Gross Tonnage : 57 G
Propulsion system:
Main engines : 2 x Caterpillar 3412
Total power : 2 x 895 KW
Gearboxes : 2 x ZF-Twindisk
Propellers : 2 x variable pitch propellers 4 blade
Bow thruster :1 x 35 KW hydraulically driven
Steering gear:
Twin Rudders with FU / NFU and local control + emergency
control
Hull Material:
Hull : GRP
Superstructure : GRP
Electrical Equipment:
Network : 24 V D.C., 230 V / 400 V 50 Hz
Generator set : 2x Caterpillar C2.2
Power management / auto-start
Capacity : 2 x 27 kW 35 KVA
Deck equipment:
• FRC with 240 hp inboard engine, wateryet
• MGO fuel transfer pump to refuel small boats and
workboats
• Boarding gates en Resque zones ps and stb
Tank capacity:
Fuel oil :9,6 M³
Fresh water : 3 M³
Waste water :1.0 M³
Black water :1.5 M³
Special features:
• FW Maker : Idromar MC2J
Capacity 3600 ltr 24 hr
MOB recovery equipment : Markuslifenet
• Rescue zones: Rescue zone on both sides and rear
Accommodation (fully air conditioned):
Cabins : 3 single crew cabins 1 double
Bunks : Total 6 bunks
Mess room / Dayroom ( Wi-Fi included)
Pantry/ Galley fully equipped
Other Capacities:
Minimum Crew : 4
Maximum Crew : 6
Deck space : 20 M² :
Life rafts : 2 x 6 pers Survitec
Speed:
Max Speed : 28 knots
Cruising Speed : 15 kno
Communication & Navigation Equipment:
Modern navigational aids on board
Vessel is equipped for GMDSS A2
X-band radar :
GPS-receiver:
GMDSS VHF/DSC : 2 x Sailor 6222
GMDDS Handheld : 2 x Sailor 3500
MF / HF DSC radio : 1 x Furuno FS-1562
Gyro Compass : 1 x Furuno SC-50
AIS system : 1 x Furuno FA-150
Magnetic compass : 1 x Anshutz
Autopilot : 1 x Simrad AP-50
Echo sounder : 1 x Furuno
Wind indicator : 1 x B&G
Navtex : 1 x Furuno NX-300
Epirb : 1 x Jotron Tron60S
SART : 1 x Jotron Tronsart
VSAT/4G : 1 x Sailor 800
Wi-Fi : in accommodation
Ships computer : 1 x PC workstations
with internet and printer
